سنسور خازنی

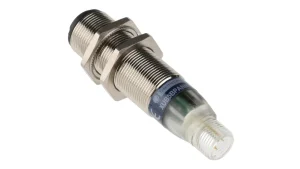

سنسور خازنی بدنه فلزی با قطر 12 میلی متر

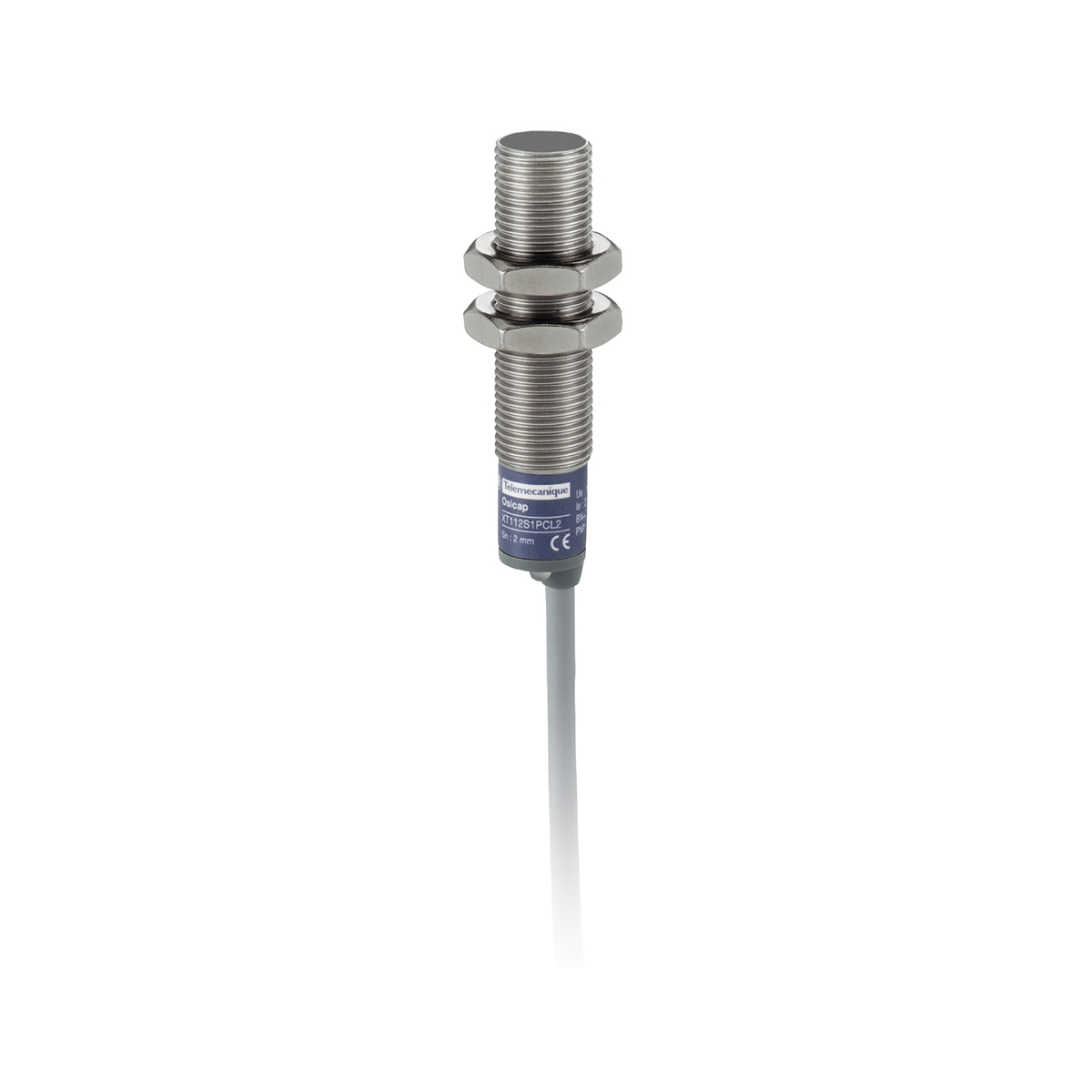

Capacitive sensor – XT1 – cylindrical M12 – stainless steel – Sn 2mm – cable 2m
| range of product |
OsiSense XT
|
|
|---|---|---|
| sensor type |
Capacitive proximity sensor
|
|
| product specific application |
Detection of insulated or conductive materials
|
|
| sensor name |
XT1
|
|
| sensor design |
Cylindrical M12
|
|
| size |
50 mm
|
|
| body type |
Fixed
|
|
| detector flush mounting acceptance |
Flush mountable
|
|
| material |
Stainless steel
|
|
| enclosure material |
Stainless steel 303
|
|
| type of output signal |
Discrete
|
|
| wiring technique |
3-wire
|
|
| [Sn] nominal sensing distance |
2 mm
|
|
| discrete output function |
1 NO
|
|
| output circuit type |
DC
|
|
| discrete output type |
NPN
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| [Us] rated supply voltage |
24 V DC with reverse polarity protection
|
|
| maximum delay response |
5 ms
|
|
| IP degree of protection |
IP67 conforming to IEC 60529
IP67 conforming to IEC 60947-5-2 |
ISO thread |
M12 x 1
|
|
|---|---|---|
| detection face |
Frontal
|
|
| [Sa] assured operating distance |
0…1.44 mm
|
|
| adjustment zone |
0.5…5 mm
|
|
| differential travel |
< 0.2 x Sr
|
|
| repeat accuracy |
< 0.1 x Sr
|
|
| wire insulation material |
PVC
|
|
| status LED |
Output state indication: 1 LED (yellow)
|
|
| supply voltage limits |
12…30 V DC
|
|
| maximum residual current |
0.1 mA open state
|
|
| protection type |
Short-circuit protection
|
|
| switching frequency |
<= 300 Hz
|
|
| maximum voltage drop |
<2 V (closed)
|
|
| current consumption |
< 15 mA
|
|
| maximum delay first up |
30 ms
|
|
| maximum delay recovery |
5 ms
|
|
| maximum switching current |
200 mA
|
|
| marking |
CE
|
|
| setting-up |
Sensitivity by potentiometer
|
|
| threaded length |
37 mm
|
|
| length |
50 mm
|
|
| net weight |
0.07 kg
|
| standards |
EN/IEC 60947-5-2
|
|
|---|---|---|
| product certifications |
CETLus
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| vibration resistance |
10 gn amplitude = 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27
|
|
| resistance to electrostatic discharge |
4 kV contact conforming to IEC 61000-4-2
8 kV air conforming to IEC 61000-4-2 |
|
| resistance to electromagnetic fields |
3 V/m conforming to IEC 61000-4-3
|
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
70 g
|
|
| Package 1 Height |
1.2 cm
|
|
| Package 1 width |
15 cm
|
|
| Package 1 Length |
21 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
70
|
|
| Package 2 Weight |
5.358 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
