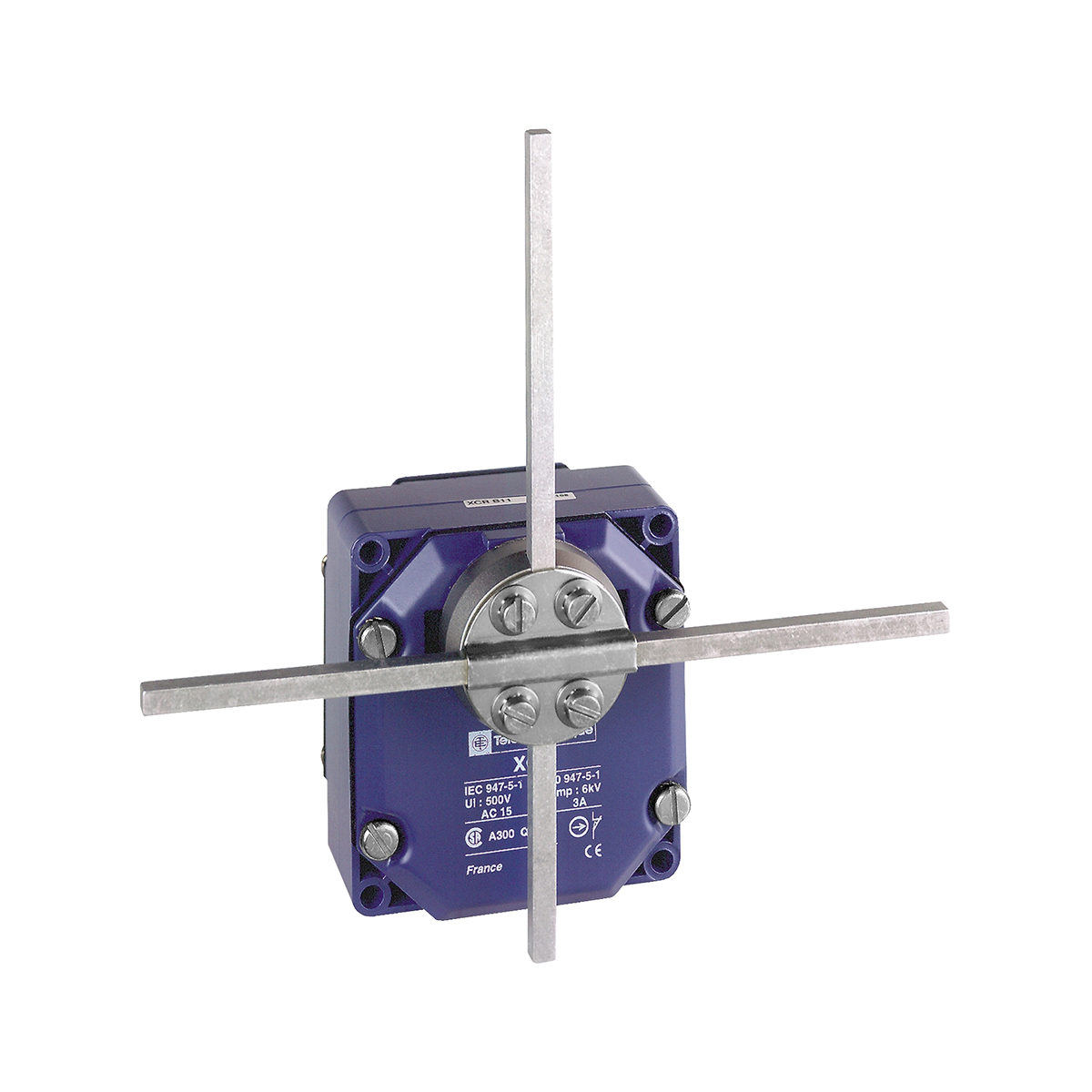

لیمیت سوئیچ اشنایدر الکتریک پلاستيکی با سری ميله ای مربعی
| فنی | |
| کد فنی | XCRF17 |
| نام اختصاری | XCRF |
| نوع ولتاژ | 300V |
| نوع عملکرد | لیمیت سوئیچ پلاستيکی با سری ميله ای مربعی 4 طرفه |
| کاربرد محصول | کنترل حرکت روی خطوط نقاله |
| تعداد کنتاکتهای کمکی | 2X 1NC+NO |
| خصوصیات ظاهری | |
| جنس بدنه | پلاستیکی |
| محیطی | |
| درجه حفاظت بر حسب IP | IP54 |
| range of product |
OsiSense XC
|
|
|---|---|---|
| series name |
Special format
|
|
| product or component type |
Limit switch
|
|
| product specific application |
For hoisting and mechanical handling applications
|
|
| device short name |
XCR
|
|
| sensor design |
–
|
|
| body type |
Fixed
|
|
| head type |
Rotary head
|
|
| material |
Metal
|
|
| fixing mode |
By the body
|
|
| movement of operating head |
Rotary
|
|
| type of operator |
Stay put crossed rods lever metal square rod 6 mm
|
|
| type of approach |
Lateral approach, 2 directions
|
|
| electrical connection |
Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 1.5 mm²
|
|
| number of poles |
4
|
|
| contacts type and composition |
2 x (1 NC + 1 NO)
|
|
| contact operation |
Snap action
|
|
| contact block per direction [control circuit] |
1 per direction
|
|
| positive opening |
With
|
| body material |
Zinc alloy
|
|
|---|---|---|
| switch actuation |
By any moving part
|
|
| cable entry |
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm conforming to NF C 68-300
|
|
| contacts insulation form |
Zb
|
|
| number of steps |
1
|
|
| positive opening minimum torque |
0.7 N.m
|
|
| minimum torque for tripping |
0.6 N.m
|
|
| minimum actuation speed |
0.01 m/min
|
|
| maximum actuation speed |
1.5 m/s
|
|
| maximum displacement angle |
-90 °
90 ° |
|
| contact code designation |
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
|
| [Ui] rated insulation voltage |
300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1 500 V (pollution degree 3) conforming to VDE 0110 300 V conforming to CSA C22.2 No 14 |
|
| maximum resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3
|
|
| [Uimp] rated impulse withstand voltage |
6 kV IEC 60664
6 kV IEC 60947-1 |
|
| short-circuit protection |
10 A cartridge fuse, type gG
|
|
| electrical durability |
5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
|
| mechanical durability |
10000000 cycles
|
|
| width |
85 mm
|
|
| height |
95 mm
|
|
| depth |
75 mm
|
|
| net weight |
1.135 kg
|
|
| terminals description ISO n°1 |
(13-14)NO
(21-22)NC |
| shock resistance |
68 gn conforming to IEC 60068-2-27
|
|
|---|---|---|
| vibration resistance |
9 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| IP degree of protection |
IP54 conforming to IEC 60529
|
|
| overvoltage category |
Class I conforming to IEC 61140
Class I conforming to NF C 20-030 |
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| protective treatment |
TC
|
|
| product certifications |
CCC
CSA |
|
| standards |
EN 60204-1
IEC 60204-1 IEC 60947-5-1 CSA C22.2 No 14 NF C 79-130 EN 60947-5-1 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.121 kg
|
|
| Package 1 Height |
9 cm
|
|
| Package 1 width |
31.7 cm
|
|
| Package 1 Length |
12.4 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
48
|
|
| Package 2 Weight |
69.588 kg
|
|
| Package 2 Height |
77 cm
|
|
| Package 2 width |
80 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
