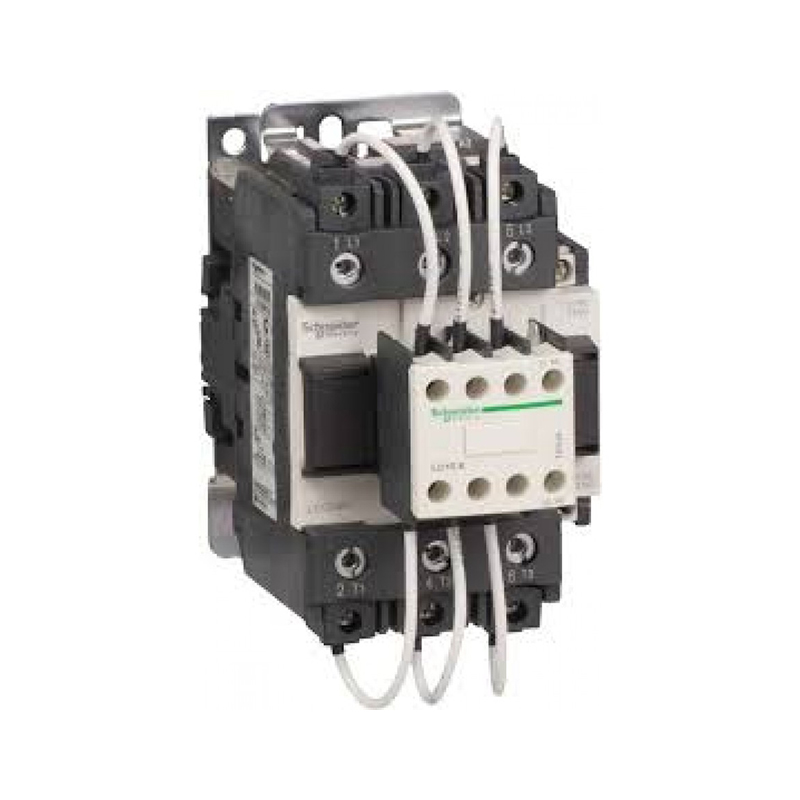

نقد و بررسی تخصصی کنتاکتور خازنی 17 کیلووار 220 ولت AC اشنایدر الکتریک
کنتاکتور خازنی یک نوع کلیدکنترل شونده الکتریکی است که برای کلیدزنی یک مدار قدرت یا کنترل مورد استفادهقرار میگیرد.
TeSys LC1D.K capacitor duty contactor – 3P – 16.7 kVAR – 415 V – 220 V AC coil
کنتاکتور خازنی 17 کیلووار 220 ولت AC
TeSys LC1D.K capacitor duty contactor – 3P – 16.7 kVAR – 415 V – 220 V AC coil
range |
TeSys
|
|
|---|---|---|
| product name |
TeSys LC1D.K
|
|
| product or component type | ||
| device short name |
LC1DGK
|
|
| contactor application |
Power factor correction
|
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| [Ue] rated operational voltage |
Power circuit: <= 690 V AC 50/60 Hz
|
|
| reactive power rating |
16.7 kvar at 400…440 V AC 50/60 Hz 55 °C
24 kvar at 660…690 V AC 50/60 Hz 55 °C 8.5 kvar at 220…240 V AC 50/60 Hz 55 °C |
|
| control circuit type |
AC at 50/60 Hz
|
|
| [Uc] control circuit voltage |
220 V AC 50/60 Hz
|
|
| auxiliary contact composition |
1 NO + 1 NC
|
|
| mounting support |
Plate
Rail |
|
| standards |
VDE 0560
NF C 54-100 IEC 60070 IEC 60831 |
|
| product certifications |
UL
CSA |
|
| connections – terminals |
Power circuit: connector 1 2.5 mm² – cable stiffness: flexible with cable end
Power circuit: connector 1 4 mm² – cable stiffness: solid with cable end Power circuit: connector 2 1.5 mm² – cable stiffness: flexible with cable end Power circuit: connector 2 4 mm² – cable stiffness: solid with cable end |
|
| tightening torque |
Power circuit: 1.7 N.m – on connector
|
| auxiliary contacts type |
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1 |
|---|
| IP degree of protection |
IP2x conforming to IEC 60529
IP2x conforming to VDE 0106 |
|
|---|---|---|
| protective treatment |
TH conforming to IEC 60068-2-30
|
|
| ambient air temperature for operation |
-5…60 °C
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| operating altitude |
3000 m without derating
|
|
| height |
130 mm
|
|
| width |
45 mm
|
|
| depth |
122 mm
|
|
| net weight |
0.45 kg
|
