| range of product |
EZC100
|
|
|---|---|---|
| range |
EasyPact
|
|
| device short name |

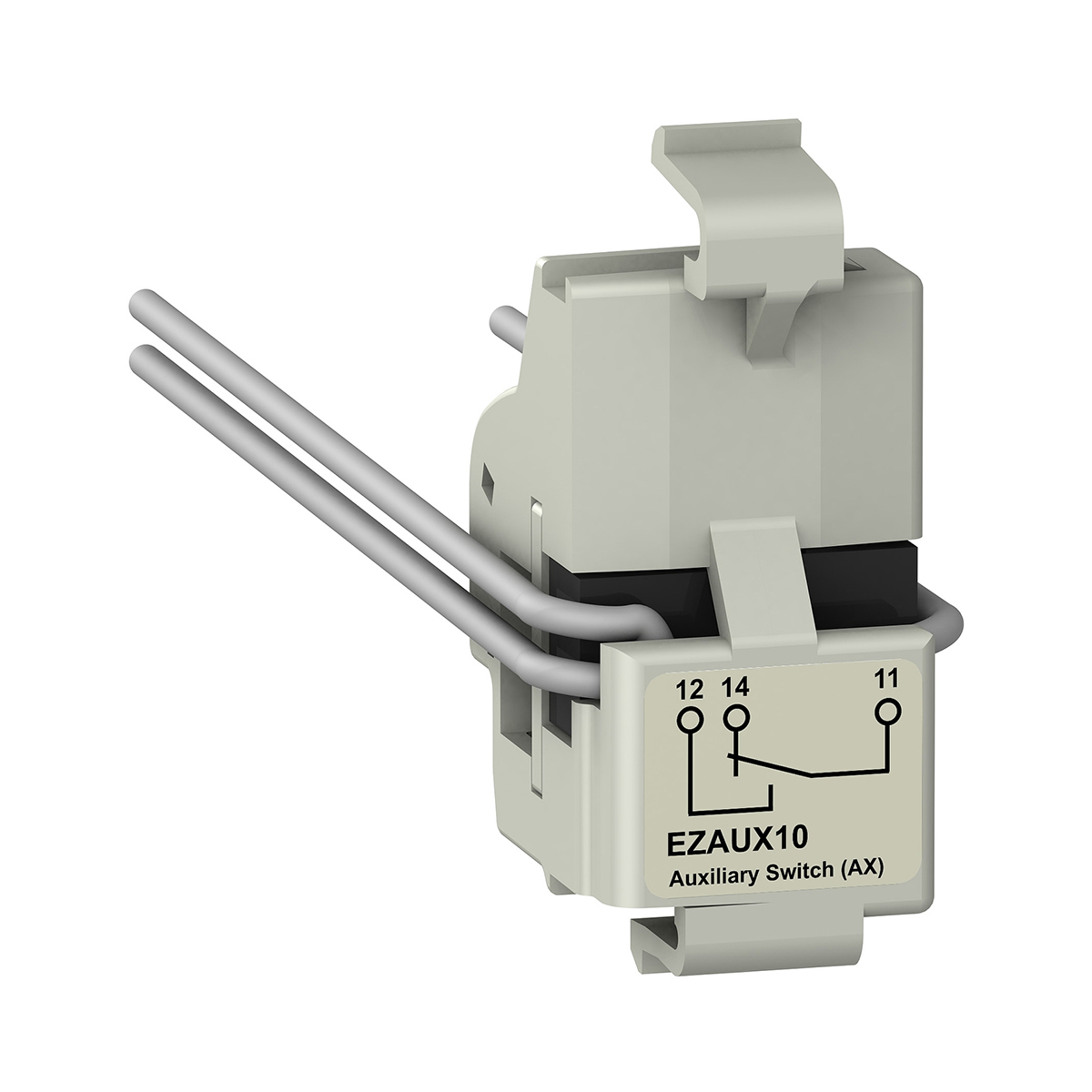

AX
|
|
| product or component type |
Switch
|
|
| device application |
Signalling
|
|
| range compatibility |
EZC circuit breaker
|
|
| signal contacts composition |
1 NO/NC
|
| auxiliary contacts type |
Standard
|
|
|---|---|---|
| [Ith] conventional free air thermal current |
5 A
|
|
| [Ie] rated operational current |
AC-12: 3 A at 250 V AC 50/60 Hz
AC-12: 5 A at 125 V AC 50/60 Hz AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-15: 2 A at 250 V AC 50/60 Hz AC-15: 3 A at 125 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz DC-12: 0.2 A at 250 V DC DC-12: 0.4 A at 125 V DC DC-12: 2.5 A at 48 V DC DC-12: 4 A at 24 V DC DC-14: 0.2 A at 250 V DC DC-14: 0.4 A at 125 V DC DC-14: 1 A at 48 V DC DC-14: 3 A at 24 V DC |
|
| minimum load |
10 mA at 24 V
|
|
| auxiliary connection terminal |
Lead wire
|
| Package 1 Weight |
0.040 kg
|
|
|---|---|---|
| Package 1 Height |
0.250 dm
|
|
| Package 1 width |
0.700 dm
|
|
| Package 1 Length |
0.850 dm
|
| REACh Regulation |
REACh Declaration
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
Yes
|
|
| China RoHS Regulation |
China RoHS declaration
|
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
