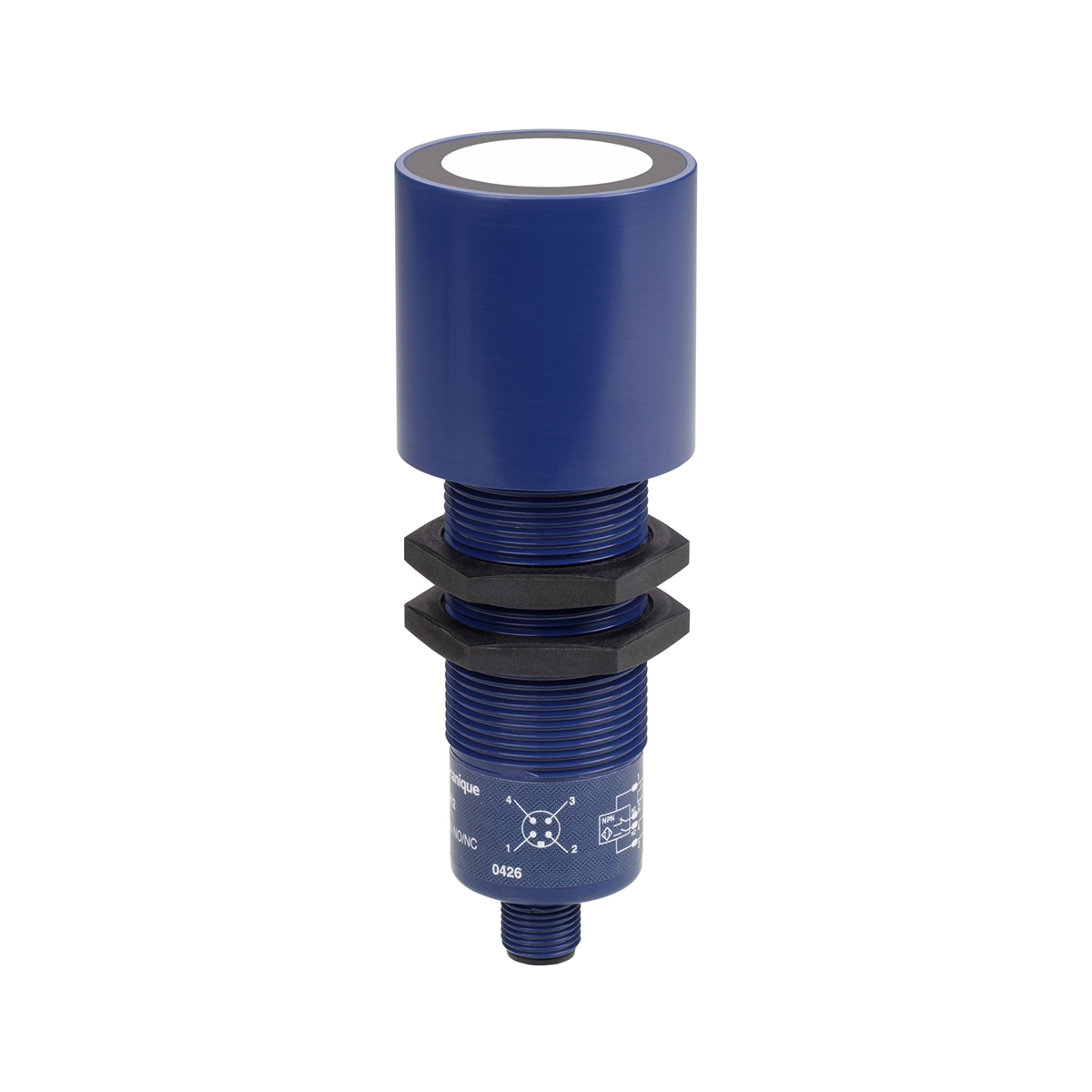

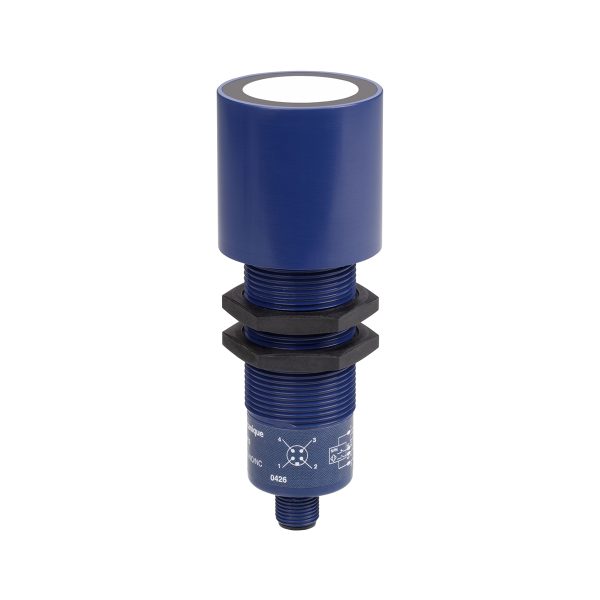

سنسور آلتراسونیک اشنایدر الکتریک
سنسور آلتراسونیک اشنایدر
| range of product |
OsiSense XX
|
|
|---|---|---|
| sensor type |
Ultrasonic sensor
|
|
| series name |
General purpose
|
|
| sensor name |
XX9
|
|
| sensor design |
Cylindrical M30
|
|
| detection system |
Diffuse
|
|
| [Sn] nominal sensing distance |
8 m adjustable with teach push-button
|
|
| material |
Plastic
|
|
| type of output signal |
Analogue
|
|
| wiring technique |
4-wire
|
|
| analogue output function |
0…10 V
|
|
| [Us] rated supply voltage |
15…24 V DC with reverse polarity protection
|
|
| electrical connection |
Male connector M12 4 pins
|
|
| [Sd] sensing range |
0.3…8 m
|
|
| beam angle |
16 °
|
|
| IP degree of protection |
IP67 conforming to IEC 60529
|
enclosure material |
ULTEM
|
|
|---|---|---|
| front material |
Epoxy
|
|
| thread type |
M30 x 1.5
|
|
| supply voltage limits |
14…28 V DC
|
|
| function available |
Without synchronisation mode
|
|
| [Sa] assured operating distance |
0.3…8 m (teach mode)
|
|
| blind zone |
0…300 mm
|
|
| transmission frequency |
75 kHz
|
|
| repeat accuracy |
2.54 %
|
|
| deviation angle from 90° of object to be detected |
-5…5 °
|
|
| minimum size of detected object |
Cylinder diameter 50.68 mm at 4.732 m
|
|
| status LED |
Setting-up assistance: 1 LED (dual colour)
Supply on: 1 LED (green) Output state: 1 LED (yellow) |
|
| current consumption |
60 mA
|
|
| maximum switching capacity |
>= 1 kOhm overload and short-circuit protection
|
|
| setting-up |
Slope selection using teach button
|
|
| maximum delay first up |
1200 ms
|
|
| maximum delay response |
250 ms
|
|
| maximum delay recovery |
250 ms
|
|
| marking |
CE
|
|
| threaded length |
64.3 mm
|
|
| height |
44 mm
|
|
| width |
44 mm
|
|
| depth |
118 mm
|
|
| net weight |
0.115 kg
|
| standards |
IEC 60947-5-2
|
|
|---|---|---|
| product certifications |
CCSAus
UL |
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10…55 Hz)
|
|
| shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
|
|
| resistance to electrostatic discharge |
8 kV level 4 conforming to IEC 61000-4-2
|
|
| resistance to electromagnetic fields |
10 V/m level 3 conforming to IEC 61000-4-3
|
|
| resistance to fast transients |
1 kV level 3 conforming to IEC 61000-4-4
|
| Package 1 Weight |
0.191 kg
|
|
|---|---|---|
| Package 1 Height |
0.550 dm
|
|
| Package 1 width |
0.710 dm
|
|
| Package 1 Length |
1.420 dm
|
