سنسور الکترومکانيکال کنترل فشار 10 بار اشنایدر الکتریکسنسور الکترومکانيکال کنترل فشار 10 بار اشنایدر الکتریک
سنسور تجهیزی است که کمیت های فیزیکی مانند تعداد، اندازه، دما، رنگ، فاصله، حجم، سرعت و غیره را به کمیت های الکتریکی آنالوگ یا دیجیتال تبدیل می کند
در استفاده از سنسورها می بایستی با انواع سیگنال های خروجی الکتریکی آشنا بود.

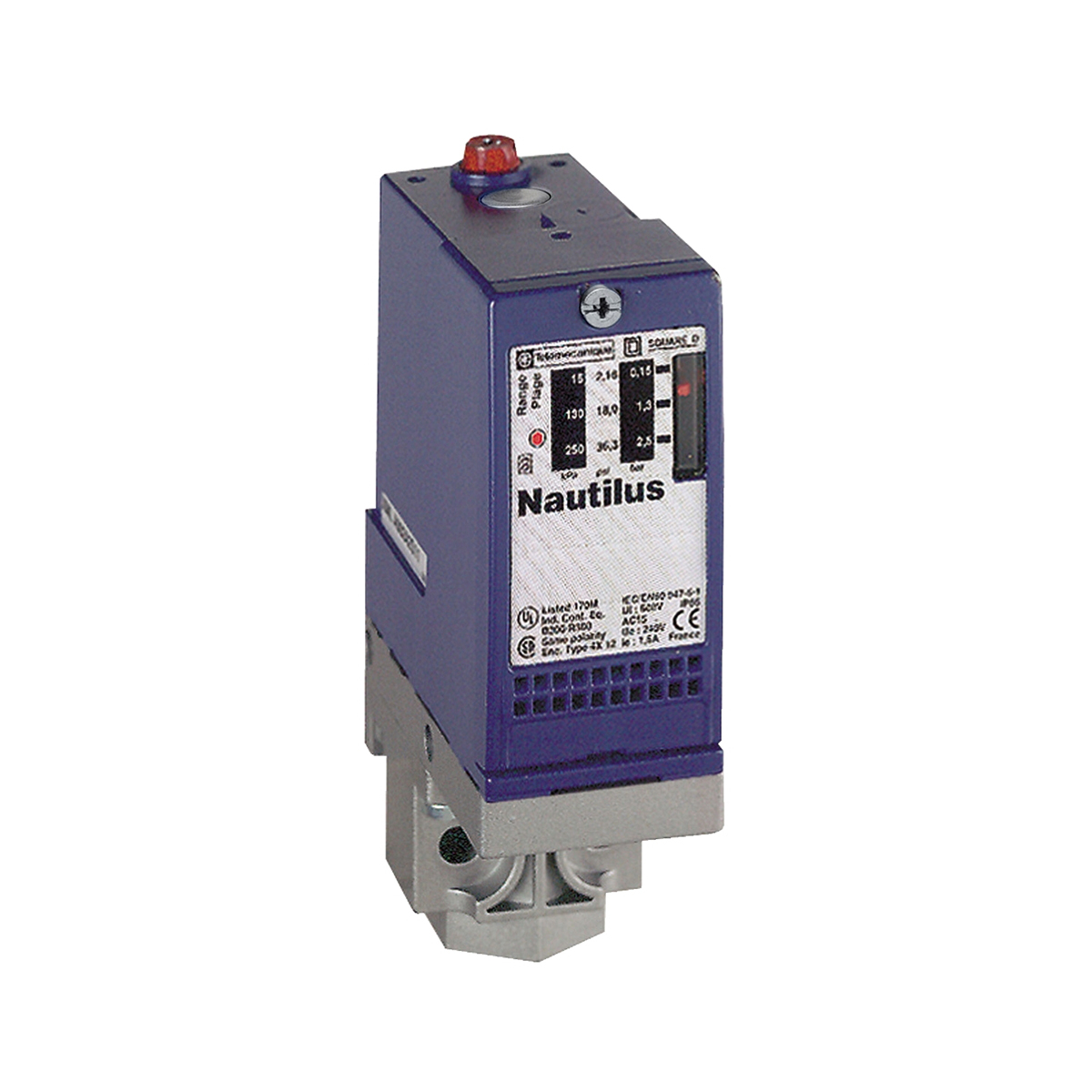

سنسور الکترومکانيکال کنترل فشار 10 بار
سنسور الکترومکانيکال کنترل فشار 10 بار اشنایدر الکتریک
Pressure switch XMLA 10 bar – fixed scale 1 threshold – 1 C/O
| range of product |
OsiSense XM
|
|
|---|---|---|
| product or component type |
Electromechanical pressure sensor
|
|
| pressure sensor type |
Electromechanical pressure sensor
|
|
| device short name |
XMLA
|
|
| pressure sensor size |
10 bar
|
|
| controlled fluid |
Air (0…70 °C)
Fresh water (0…70 °C) Hydraulic oil (0…70 °C) |
|
| fluid connection type |
G 1/4 (female) conforming to ISO 228
|
|
| electrical connection |
Screw-clamps terminals, 1 x 0.5…2 x 2.5 mm²
1 connector Pg 13 |
|
| AWG gauge |
AWG 20…AWG 14
|
|
| cable entry |
Cable gland 9…13 mm
|
|
| contacts type and composition |
1 C/O
|
|
| product specific application |
–
|
|
| pressure switch type of operation |
Detection of 1 single threshold
|
|
| electrical circuit type |
Control circuit
|
|
| scale type |
Fixed differential
|
|
| local display |
With
|
|
| adjustable range of switching point on rising pressure |
0.6…10 bar
|
|
| adjustable range of switching point on falling pressure |
0.1…9.5 bar
|
|
| maximum permissible accidental pressure |
22.5 bar
|
|
| destruction pressure |
45 bar
|
|
| pressure actuator |
Diaphragm
|
|
| materials in contact with fluid |
FPM, FKM
Zinc alloy |
|
| enclosure material |
Zinc alloy
|
|
| [In] rated current |
3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
natural differential at low setting |
0.5 bar (+/- 0.05 bar)
|
|
|---|---|---|
| natural differential at high setting |
0.5 bar (+/- 0.05 bar)
|
|
| maximum permissible pressure – per cycle |
12.5 bar
|
|
| terminal block type |
4 terminals
|
|
| maximum operating rate |
120 cyc/mn
|
|
| repeat accuracy |
2 %
|
|
| [Ui] rated insulation voltage |
300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
|
| [Uimp] rated impulse withstand voltage |
6 kV EN/IEC 60947-1
|
|
| auxiliary contacts operation |
Snap action
|
|
| contacts material |
Silver contacts
|
|
| maximum resistance across terminals |
25 mOhm conforming to IEC 255-7 category 3
25 mOhm conforming to NF C 93-050 method A |
|
| short-circuit protection |
10 A cartridge fuse, type gG (gl)
|
|
| mechanical durability |
5000000 cycles
|
|
| setting |
External
|
|
| height |
113 mm
|
|
| depth |
75 mm
|
|
| width |
35 mm
|
|
| net weight |
0.685 kg
|
standards |
CE
CSA C22.2 No 14 UL 508 EN/IEC 60947-5-1 |
|
|---|---|---|
| product certifications |
UL
EAC LROS (Lloyds register of shipping) CCC CSA BV |
|
| protective treatment |
TC standard version
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| operating position |
Any position
|
|
| vibration resistance |
4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
|
|
| shock resistance |
50 gn conforming to IEC 60068-2-27
|
|
| electrical shock protection class |
Class I conforming to IEC 1140
Class I conforming to IEC 536 Class I conforming to NF C 20-030 |
|
| IP degree of protection |
IP66 conforming to EN/IEC 60529
|
