سنسور خازنی بدنه پلاستیکی اشنایدر الکتریک با قطر 30 میلی متراز سنسورهای خازنی اشنایدر برای تشخیص اجسام فلزی و غیرفلزی استفاده می شود. این سنسورها در سه نوع خروجی دیجیتالی، نامور و آنالوگ تولید می شود
سنسور خازنی بدنه پلاستیکی

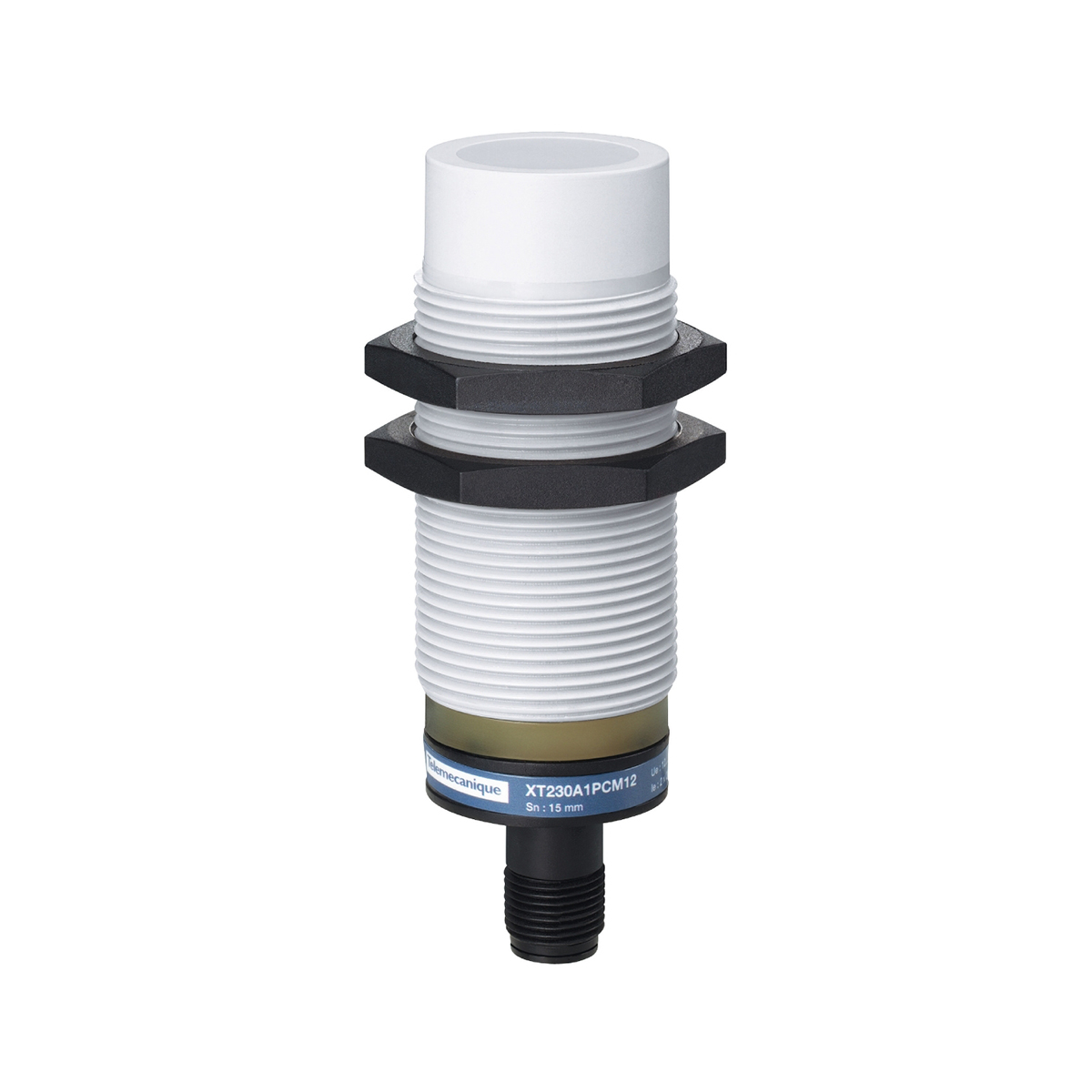

سنسور خازنی بدنه پلاستیکی اشنایدر الکتریک با قطر 30 میلی متر
Capacitive sensor – XT1 – cylindrical M30 – plastic – Sn 15 mm – 12..24 V DC
| range of product |
OsiSense XT
|
|
|---|---|---|
| sensor type |
Capacitive proximity sensor
|
|
| product specific application |
Detection of insulated or conductive materials
|
|
| sensor name |
XT2
|
|
| sensor design |
Cylindrical M30
|
|
| size |
74.5 mm
|
|
| body type |
Fixed
|
|
| detector flush mounting acceptance |
Non flush mountable
|
|
| material |
Plastic
|
|
| enclosure material |
Plastic
|
|
| type of output signal |
Discrete
|
|
| wiring technique |
4-wire
|
|
| [Sn] nominal sensing distance |
15 mm
|
|
| discrete output function |
1 NC + 1 NO
|
|
| output circuit type |
DC
|
|
| discrete output type |
PNP
|
|
| electrical connection |
Male connector M12, 4 pins
|
|
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection
|
|
| maximum delay response |
15 ms
|
|
| IP degree of protection |
IP67 double insulation conforming to IEC 60529
|
ISO thread |
M30 x 1.5
|
|
|---|---|---|
| detection face |
Frontal
|
|
| [Sa] assured operating distance |
0…11 mm
|
|
| adjustment zone |
0…17 mm
|
|
| differential travel |
< 1…20 % Sr
|
|
| repeat accuracy |
< 5 % Sr
|
|
| status LED |
Output state indication: 1 LED (yellow)
|
|
| supply voltage limits |
10…30 V DC
|
|
| maximum residual current |
100 mA open state
|
|
| protection type |
Short-circuit protection
|
|
| switching frequency |
<= 150 Hz
|
|
| maximum voltage drop |
<2.5 V (closed)
|
|
| current consumption |
< 25 mA
|
|
| maximum delay first up |
100 ms
|
|
| maximum delay recovery |
15 ms
|
|
| maximum switching current |
400 mA
|
|
| marking |
CE
|
|
| setting-up |
Sensitivity by potentiometer
|
|
| threaded length |
48.5 mm
|
|
| length |
74.5 mm
|
|
| net weight |
0.15 kg
|
| standards |
EN/IEC 60947-5-2
|
|
|---|---|---|
| product certifications |
CULus
|
|
| ambient air temperature for operation |
-10…60 °C
|
|
| vibration resistance |
10 gn amplitude = 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27
|
|
| resistance to electrostatic discharge |
4 kV contact conforming to IEC 61000-4-2
8 kV air conforming to IEC 61000-4-2 |
|
| resistance to electromagnetic fields |
3 V/m conforming to IEC 61000-4-3
|
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
| Package 1 Weight |
0.081 kg
|
|
|---|---|---|
| Package 1 Height |
0.450 dm
|
|
| Package 1 width |
0.550 dm
|
|
| Package 1 Length |
1.200 dm
|
