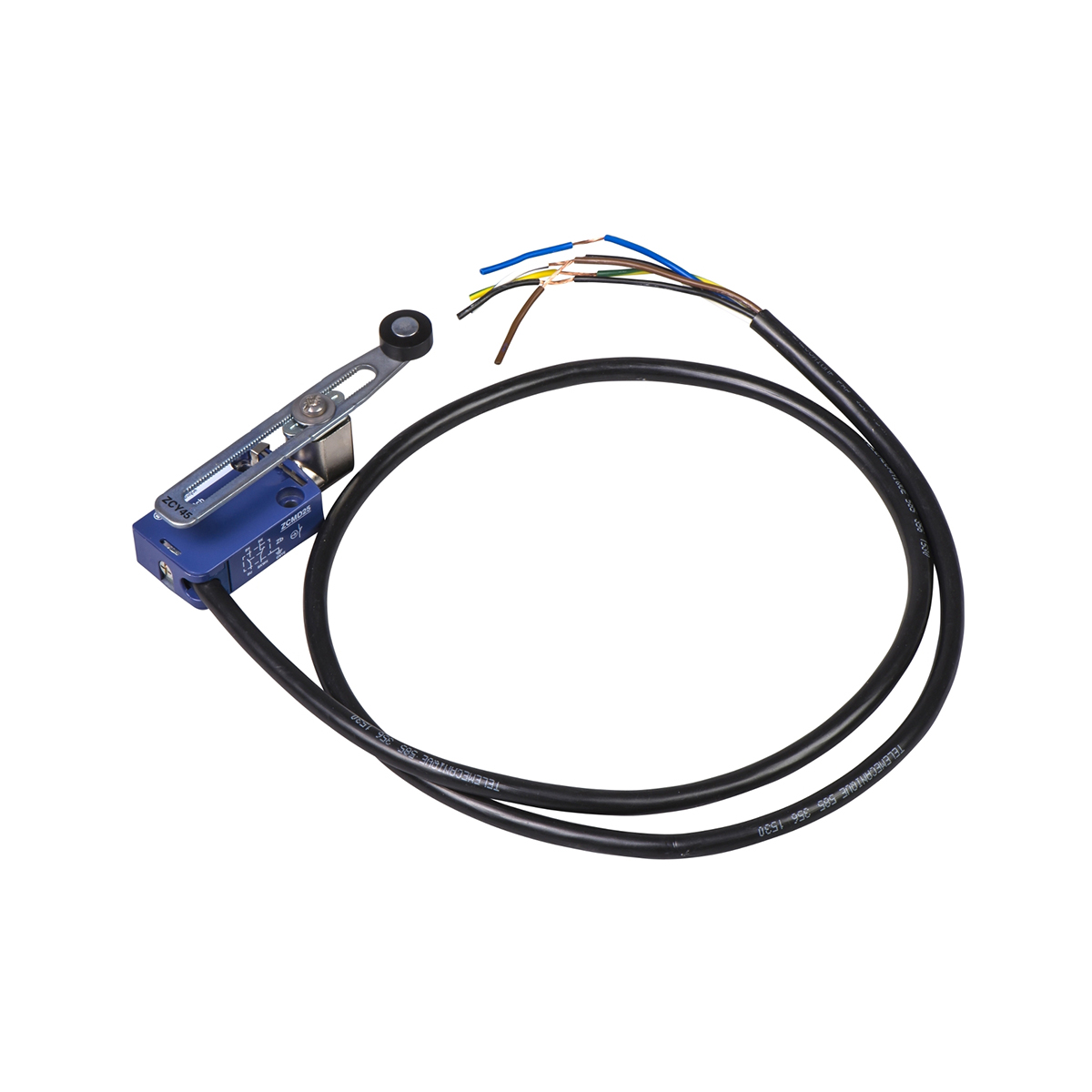

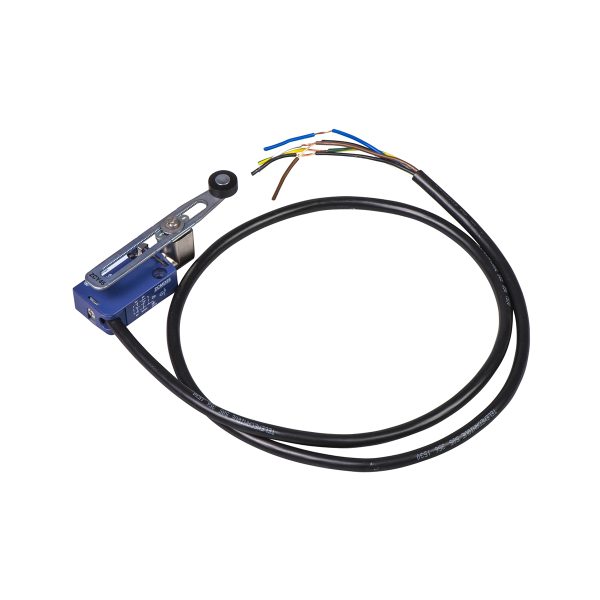

لیمیت سوئیچ اشنایدر الکتریک فلزی قرقره ای با طول قابل تغييرلیمیت سوئیچ اشنایدر الکتریک فلزی قرقره ای با طول قابل تغيير
| range of product |
OsiSense XC
|
|
|---|---|---|
| series name |
Standard format
|
|
| product or component type |
Limit switch
|
|
| device short name |
XCMD
|
|
| sensor design |
Miniature
|
|
| body type |
Fixed
|
|
| head type |
Rotary head
|
|
| material |
Metal
|
|
| body material |
Zamak
|
|
| head material |
Zamak
|
|
| fixing mode |
By the body
|
|
| movement of operating head |
Rotary
|
|
| type of operator |
Spring return roller lever thermoplastic variable length
|
|
| type of approach |
Lateral approach, 2 directions
|
|
| number of poles |
2
|
|
| contacts type and composition |
1 NC + 1 NO
|
|
| contact operation |
Snap action
|
| switch actuation |
By 30° cam
|
|
|---|---|---|
| electrical connection |
Removable cable connector
|
|
| cable length |
1 m
|
|
| cable composition |
5 x 0.75 mm²
|
|
| wire insulation material |
PvR
|
|
| contacts insulation form |
Zb
|
|
| positive opening |
With
|
|
| positive opening minimum force |
0.5 N
|
|
| minimum force for tripping |
0.1 N
|
|
| maximum actuation speed |
1.5 m/s
|
|
| contact code designation |
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A |
|
| [Ui] rated insulation voltage |
300 V (pollution degree 3) conforming to UL 508
400 V (pollution degree 3) conforming to IEC 60947-5-1 300 V (pollution degree 3) conforming to CSA C22.2 No 14 |
|
| maximum resistance across terminals |
25 mOhm conforming to IEC 60255-7 category 3
|
|
| [Uimp] rated impulse withstand voltage |
4 kV IEC 60664
4 kV IEC 60947-1 |
|
| short-circuit protection |
6 A cartridge fuse, type gG
|
|
| electrical durability |
5000000 cycles, DC-13, 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
|
| mechanical durability |
10000000 cycles
|
|
| width |
30 mm
|
|
| height |
50 mm
|
|
| depth |
16 mm
|
|
| net weight |
0.23 kg
|
| shock resistance |
25 gn for 18 ms conforming to IEC 60068-2-27
|
|
|---|---|---|
| vibration resistance |
5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529 IP68 conforming to IEC 60529 |
|
| IK degree of protection |
IK06 conforming to EN 62262
|
|
| overvoltage category |
Class I conforming to IEC 61140
Class I conforming to NF C 20-030 |
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| protective treatment |
TC
|
|
| product certifications |
CCC
CSA UL |
|
| standards |
CSA C22.2 No 14
EN/IEC 60204-1 UL 508 EN/IEC 60947-5-1 |
| Package 1 Weight |
0.218 kg
|
|
|---|---|---|
| Package 1 Height |
0.400 dm
|
|
| Package 1 width |
1.600 dm
|
|
| Package 1 Length |
1.050 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
Yes
|
|
| Environmental Disclosure |
Product Environmental Profile
|
|
| Circularity Profile |
End of Life Information
|
| Warranty |
18 months
|
|---|
