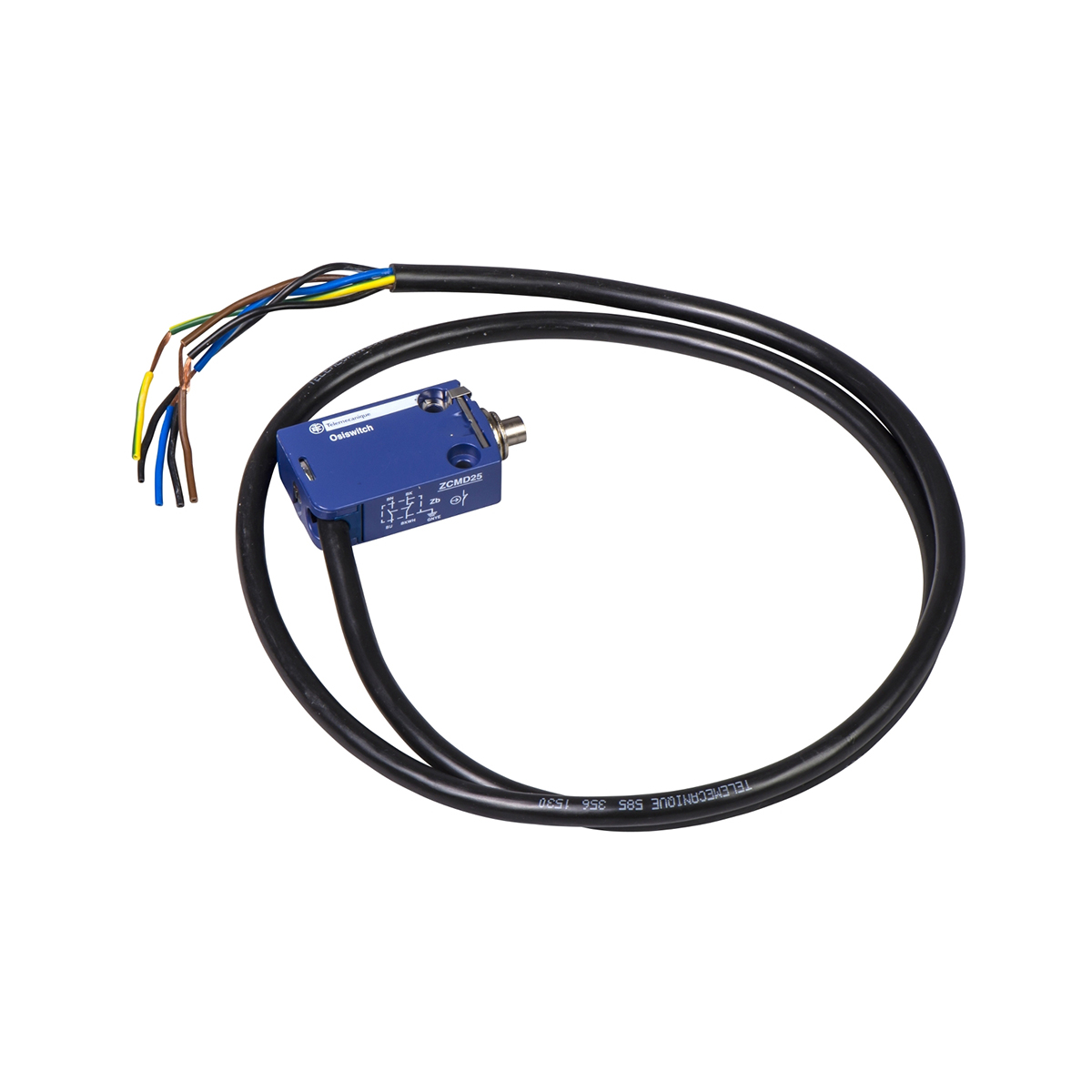

لیمیت سوئیچ فلزی فشاری با کابللیمیت سوئیچ فلزی فشاری با کابل
کد فنی XCMD2110L1 نام اختصاری XCMD نوع ولتاژ 300V نوع عملکرد لیمیت سوئیچ فشاری کاربرد محصول کنترل حرکت خطی تعداد کنتاکتهای کمکی 1NC+1NO طول کابل 1 متر خصوصیات ظاهری جنس بدنه فلزی محیطی درجه حفاظت بر حسب IP IP66 …
| range of product |
OsiSense XC
|
|
|---|---|---|
| series name |
Standard format
|
|
| product or component type |
Limit switch
|
|
| device short name |
XCMD
|
|
| sensor design |
Miniature
|
|
| body type |
Fixed
|
|
| head type |
Plunger head
|
|
| material |
Metal
|
|
| body material |
Zamak
|
|
| head material |
Zamak
|
|
| fixing mode |
By the body
|
|
| movement of operating head |
Linear
|
|
| type of operator |
Spring return plunger metal
|
|
| type of approach |
Vertical approach, 1 direction
|
|
| number of poles |
2
|
|
| contacts type and composition |
1 NC + 1 NO
|
|
| contact operation |
Snap action
|
| switch actuation |
On end
|
|
|---|---|---|
| electrical connection |
Removable cable connector
|
|
| cable length |
1 m
|
|
| cable composition |
5 x 0.75 mm²
|
|
| wire insulation material |
PvR
|
|
| contacts insulation form |
Zb
|
|
| positive opening |
With
|
|
| positive opening minimum force |
42.5 N
|
|
| minimum force for tripping |
8.5 N
|
|
| minimum actuation speed |
0.01 m/min
|
|
| maximum actuation speed |
0.5 m/s
|
|
| contact code designation |
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A |
|
| [Ui] rated insulation voltage |
300 V (pollution degree 3) conforming to UL 508
400 V (pollution degree 3) conforming to IEC 60947-5-1 300 V (pollution degree 3) conforming to CSA C22.2 No 14 |
|
| maximum resistance across terminals |
25 mOhm conforming to IEC 60255-7 category 3
|
|
| [Uimp] rated impulse withstand voltage |
IEC 60664 4 kV
IEC 60947-1 4 kV |
|
| short-circuit protection |
6 A cartridge fuse, type gG
|
|
| electrical durability |
5000000 cycles, DC-13, 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
|
| mechanical durability |
10000000 cycles
|
|
| width |
30 mm
|
|
| height |
50 mm
|
|
| depth |
16 mm
|
|
| net weight |
0.18 kg
|
| shock resistance |
25 gn for 18 ms conforming to IEC 60068-2-27
|
|
|---|---|---|
| vibration resistance |
5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529 IP68 conforming to IEC 60529 |
|
| IK degree of protection |
IK06 conforming to EN 62262
|
|
| overvoltage category |
Class I conforming to IEC 61140
Class I conforming to NF C 20-030 |
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| protective treatment |
TC
|
|
| product certifications |
CSA
UL CCC |
|
| standards |
UL 508
EN/IEC 60204-1 CSA C22.2 No 14 EN/IEC 60947-5-1 |
| Package 1 Weight |
0.166 kg
|
|
|---|---|---|
| Package 1 Height |
0.200 dm
|
|
| Package 1 width |
1.750 dm
|
|
| Package 1 Length |
1.800 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
Yes
|
|
| Environmental Disclosure |
Product Environmental Profile
|
|
| Circularity Profile |
End of Life Information
|
| Warranty |
18 months
|
|---|
