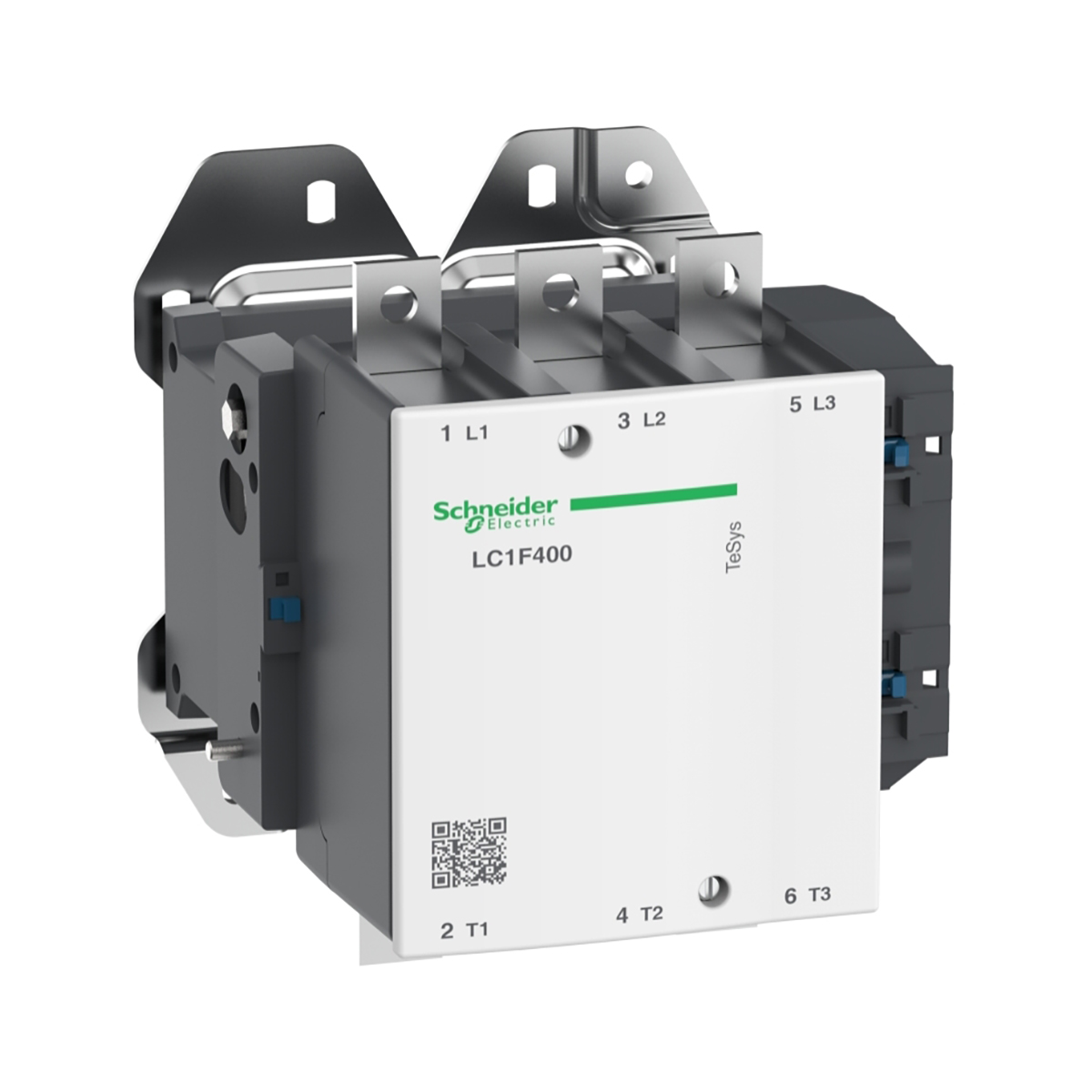

کنتاکتور اشنایدر الکتریک 400 آمپر 110 ولت ACکنتاکتور اشنایدر الکتریک 400 آمپر 110 ولت AC
TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 400 A – coil 110 V AC
کنتاکتور اشنایدر الکتریک 400 آمپر 110 ولت AC
کنتاکتور اشنایدر الکتریک 400 آمپر
TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 400 A – coil 110 V AC
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys F
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1F
|
|
| contactor application |
Resistive load
Motor control |
|
| utilisation category |
AC-1
AC-4 AC-3 |
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| [Ue] rated operational voltage |
<= 1000 V AC 50/60 Hz
<= 460 V DC |
|
| [Ie] rated operational current |
500 A (at <40 °C) at <= 440 V AC AC-1
400 A (at <55 °C) at <= 440 V AC AC-3 |
|
motor power kW |
75 kW at 400 V AC 50/60 Hz (AC-4)
200 kW at 380…400 V AC 50/60 Hz (AC-3) 220 kW at 415 V AC 50/60 Hz (AC-3) 250 kW at 440 V AC 50/60 Hz (AC-3) 257 kW at 500 V AC 50/60 Hz (AC-3) 280 kW at 660…690 V AC 50/60 Hz (AC-3) 185 kW at 1000 V AC 50/60 Hz (AC-3) 110 kW at 220…230 V AC 50/60 Hz (AC-3) |
|
| [Uc] control circuit voltage |
110 V AC 40…400 Hz
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
|---|---|---|
| overvoltage category |
III
|
|
| [Ith] conventional free air thermal current |
500 A (at 40 °C)
|
|
| rated breaking capacity |
3200 A conforming to IEC 60947-4-1
|
|
| [Icw] rated short-time withstand current |
3600 A 40 °C – 10 s
2400 A 40 °C – 30 s 1700 A 40 °C – 1 min 1200 A 40 °C – 3 min 1000 A 40 °C – 10 min |
|
| associated fuse rating |
400 A aM at <= 440 V
500 A gG at <= 440 V |
|
| average impedance |
0.26 mOhm – Ith 500 A 50 Hz
|
|
| [Ui] rated insulation voltage |
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C |
|
| power dissipation per pole |
65 W AC-1
42 W AC-3 |
|
| mounting support |
Plate
|
|
| standards |
IEC 60947-1
JIS C8201-4-1 IEC 60947-4-1 EN 60947-4-1 EN 60947-1 |
|
| product certifications |
BV
UL CB ABS RINA CSA RMRoS DNV LROS (Lloyds register of shipping) |
